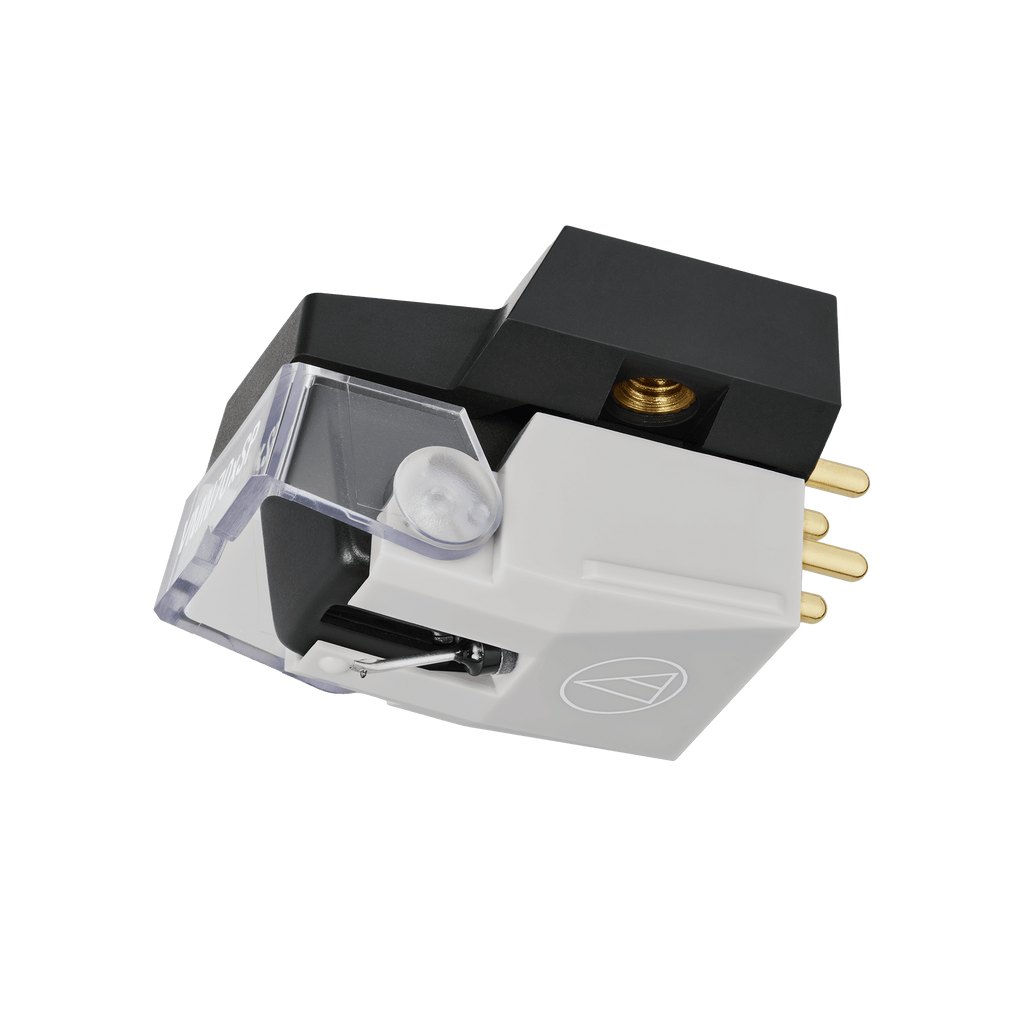

Audio-Technica AT-VM670xSP SP Dual Moving Magnet Cartridge

  • Sale
  • Regular price $139.00
Shipping calculated at checkout.


AT-VM670xSP

The AT-VMx series brings new warmth and realism to Audio-Technica’s premium dual moving magnet (MM) cartridge line, delivering an expansive soundstage that’s alive with musical detail. This latest renewal of the line introduces material and design changes to further refine the VM sound, offering responsive playback that is especially sensitive to the dynamism of musical expression.

The AT-VM670xSP cartridge is designed for playing 78 RPM monaural records. The dual magnets in this cartridge are internally connected to reduce record noise and obtain a highly focused “center” sound image that stereo cartridges can’t provide.

Like all VMx cartridges, the AT-VM670xSP features PCUHD® (Pure Copper Ultra High Drawability), resulting in richer, more nuanced audio reproduction. The number of coil turns has also been slightly reduced to improve transient response, allowing the cartridge to react more quickly to signal changes for stunningly clean music with lifelike immediacy. The stylus’s 3.0 mil curvature radius makes it an excellent choice for playing 78s from many different eras.

We’ve also added threaded inserts to the body of each VMx cartridge, making it easier to mount (just two screws required), especially to the integrated tonearms common on high-end turntables. And a new V-cut in the stylus’s flip-up protector provides quick reference of the stylus position, serving as a guide when lowering the stylus onto a record.

Features

  • AT-VMx dual moving magnet cartridge with 3.0 mil conical bonded stylus

  • 3.0 mil conical bonded stylus designed for playing 78 RPM records

  • Paratoroidal coils improve generating efficiency for enhanced transient response

  • PCUHD (Pure Copper Ultra High Drawability) coils – and fewer coil turns – deliver highly responsive, three-dimensional sound reproduction with excellent transient response

  • Threaded inserts make cartridge easier to mount, especially to integrated tonearms

  • V-cut in the flip-up stylus protector shows stylus position, serving as a guide for lowering the stylus onto a record

  • Durable low-resonance polymer housing

  • Aluminum cantilever

  • Mono body terminating left and right channels reduces surface noise

  • Compatible with any turntable headshell that accepts 1/2" cartridges





Cartridge & Stylus
Frequency Response 20 to 20,000 Hz
Vertical Tracking Angle 20°
Tracking Force 4.5 to 5.5 g (5.0 g standard)
Stylus Construction Conical bonded (3.0 mil)
Recommended Load Impedance 47 k ohms
Coil Impedance 1.6 k ohms (1 kHz)
DC Resistance 375 ohms
Coil Inductance 240 mH (1 kHz)
Output Voltage 4.7 mV (1 kHz, 5 cm/sec.)
Horizontal/Vertical Output Ratio 20 dB (1 kHz)
Cantilever Aluminum pipe
Static Compliance 23 × 10-6 cm/dyne
Dimensions 28.0 mm (1.1”) × 18.3 mm (0.72”) × 17.6 mm (0.69”) (H × W × D)

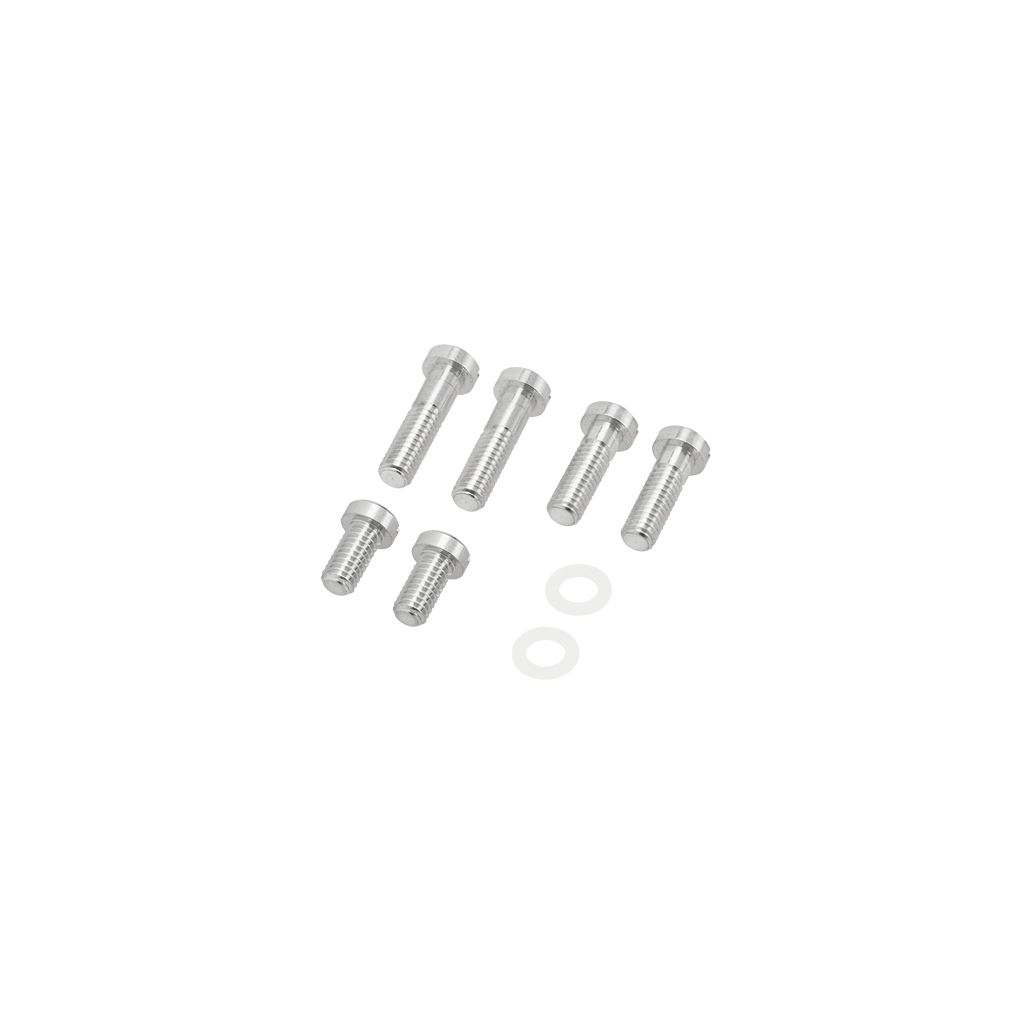

Accessories Included Cartridge installation screws** (M2.6) (10.0 mm (0.39”) × 2, 8.0 mm (0.31”) × 2, 5.0 mm (0.20”) × 2), washer × 2
Threaded Hole M2.6 × 2
Recommended Load Capacitance 150 to 250 pF
Replacement Stylus AT-VMN70xSP* (sold separately)
Stylus Curvature Radius 3.0 mil
Type VM
Weight 7.2 g (0.25 oz)
Notes

*The replacement stylus of this product is used for AT-VMx series products. In this series, we offer replacement styli with different stylus tip structures and point shapes.
**Cartridge installation screws (5.0 mm (0.20”)) x 2 are used to secure the cartridge in the box at the time of purchase. Be sure to keep and not lose these after removing the cartridge from the box.
For product improvement, the product is subject to modification without notice.
