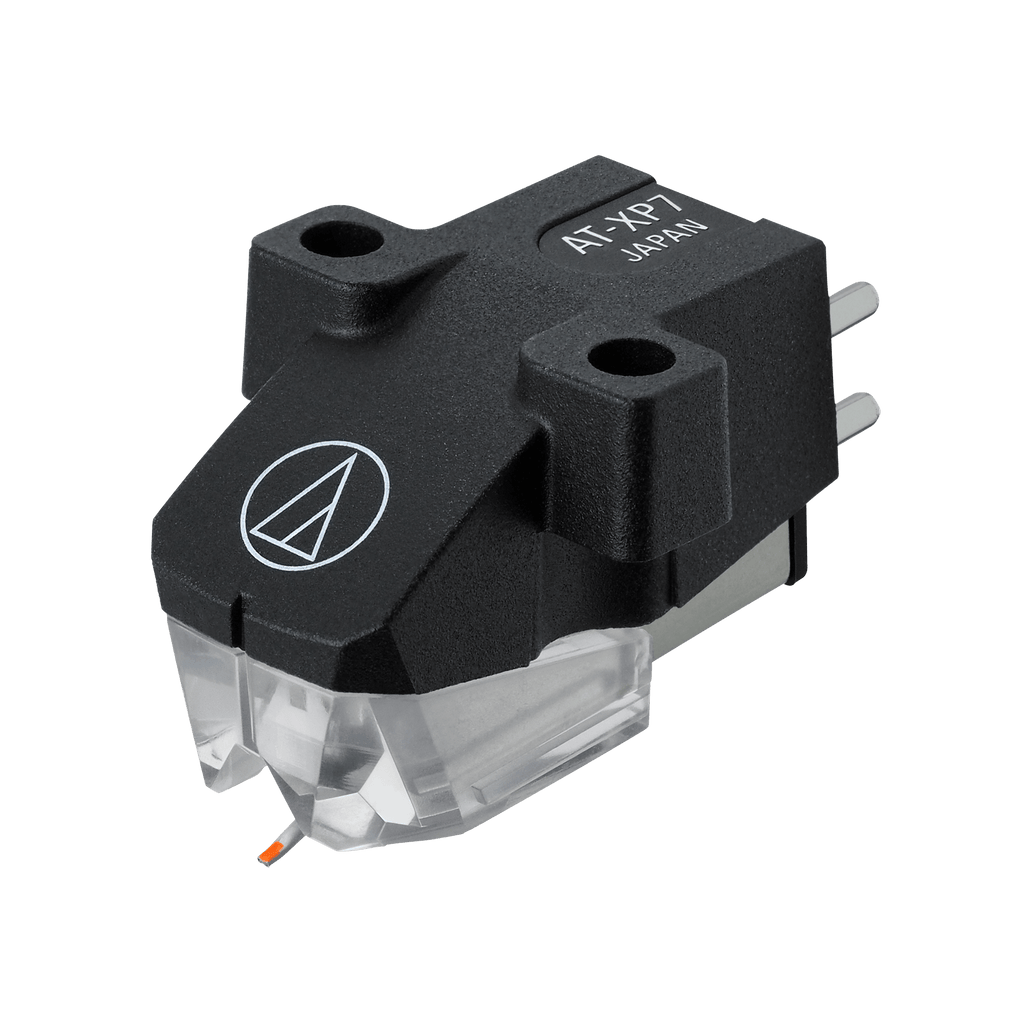

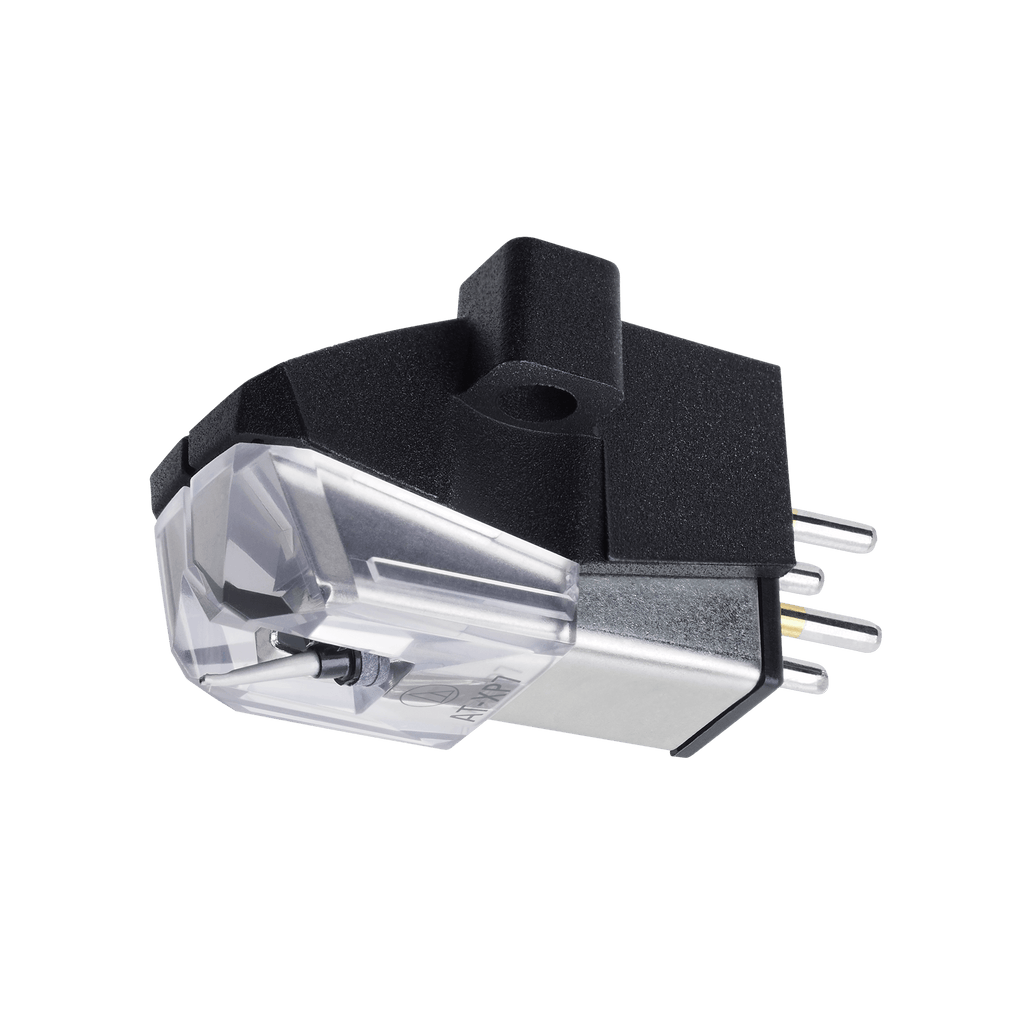

AT-XP7
The AT-XP7 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 6.0 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.
- 0.3 x 0.7 mil elliptical bonded stylus tip
- Highly-rigid polyphenylene sulfide (PPS)/glass fiber body
- 6.0 mV high-output level
- Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
- Stainless wire suspension, double-layered rubber damper and tapered aluminum cantilever ensure precise tracking
- Design offers maximum visibility of the stylus tip
- Great tracking and channel separation for high-fidelity sound
| Cartridge & Stylus |
| Frequency Response |
20-20,000 Hz |
| Channel Separation |
22 (dB at 1 kHz) |
| Vertical Tracking Angle |
20° |
| Vertical Tracking Force |
2.0-4.0 g (3.0 g standard) |
| Stylus Construction |
Bonded round shank |
| Recommended Load Impedance |
47,000 ohms |
| Coil Impedance |
6.7 k ohms (1 kHz) |
| DC Resistance |
990 ohms |
| Coil Inductance |
1.0 H (1 kHz) |
| Output Voltage |
6.0 mV (1 kHz, 5 cm/sec.) |
| Output Channel Balance |
2.0 dB (1 kHz) |
| Stylus Shape |
0.3 x 0.7 mil elliptical |
| Cantilever |
Aluminum tapered pipe |
| Static Compliance |
20 x 10-6 cm/dyne |
| Dynamic Compliance |
8.0x10-6cm/dyne (100Hz) |
| Mounting |
Half-inch |
| Dimensions |
17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D |

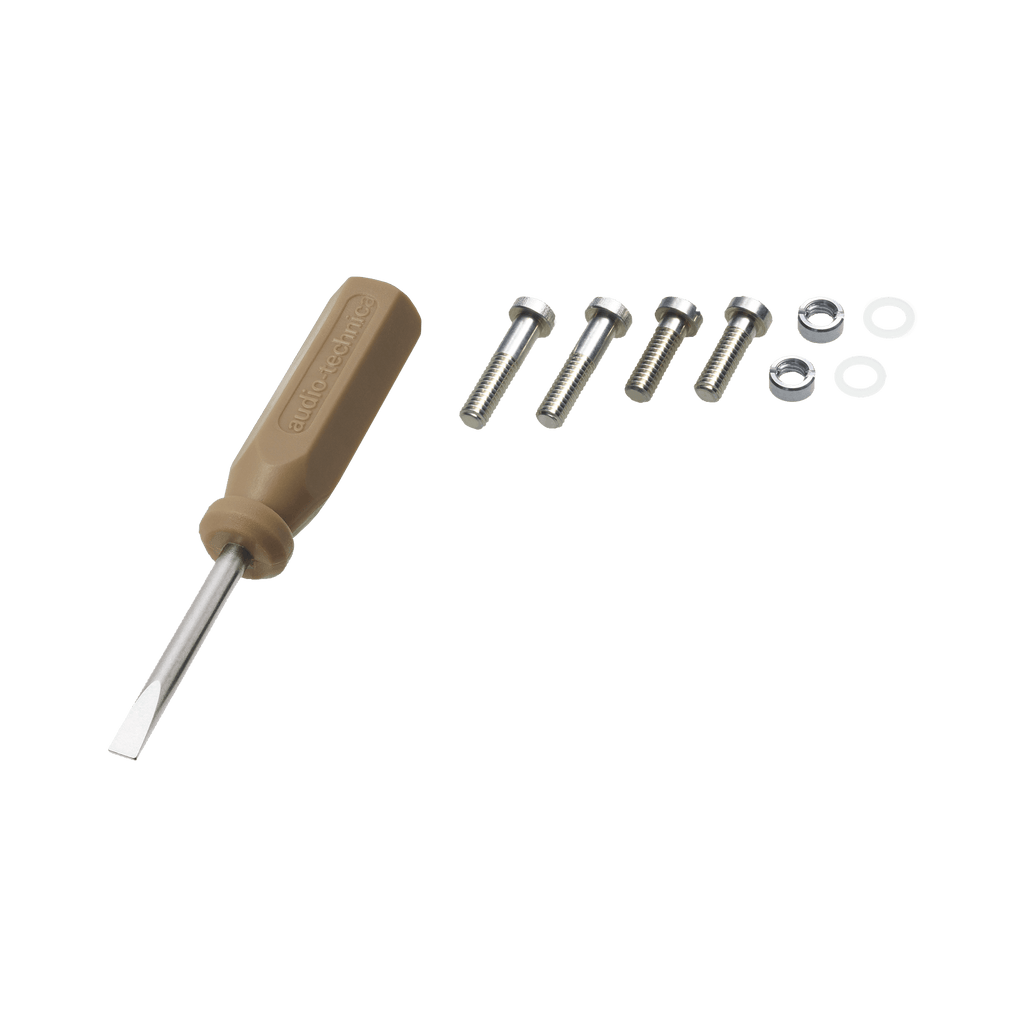

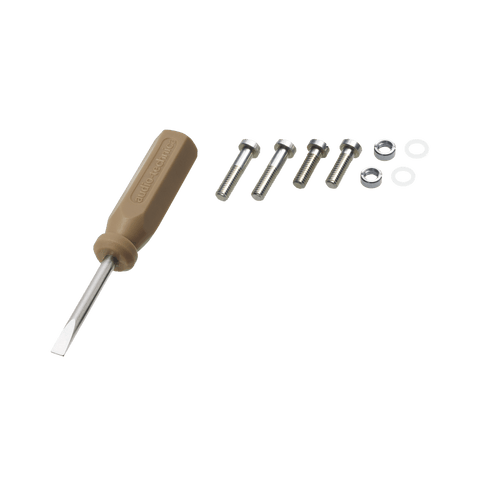

| Accessories Included |
Cartridge installation slotted screws 11.0 mm (0.43”) x 2 and 8.0 mm (0.31”) x 2,
Washer x 2, Round nut x 2, Non-magnetic screwdriver x 1 |
| Mounting Feature |
Half-inch mount |
| Recommended Load Capacitance |
100 to 200 pF |
| Replacement Stylus |
ATN-XP7 |
| Stylus Size |
0.3 x 0.7 mil |
| Type |
VM Dual Magnet |
| Weight |
6.2 g (0.22 oz) |
